Shrinking KIT Ripack 2100 F
Short description:
• SAFE: Cold nozzle patent
• PRECISE: Ripack technology, Short and rigid flame
• ROBUST: Stainless steel nozzle and body and shock absorber
• EASY: 40 KW
• ERGONOMIC: 0.955 Kg
• PRACTICAL: Gas hose reel 15 meters
Composition:
1 Hose reel in a box with manual + gun delivered in a transport bag with : 1 SECURIPACK fix gas regulator, 1 8-meter hose with crimped connection, 1 piezo, 1 tightening / loosening wrench, 1 swivel
connector, 1 user manual with CE certificate.
Detailed description:

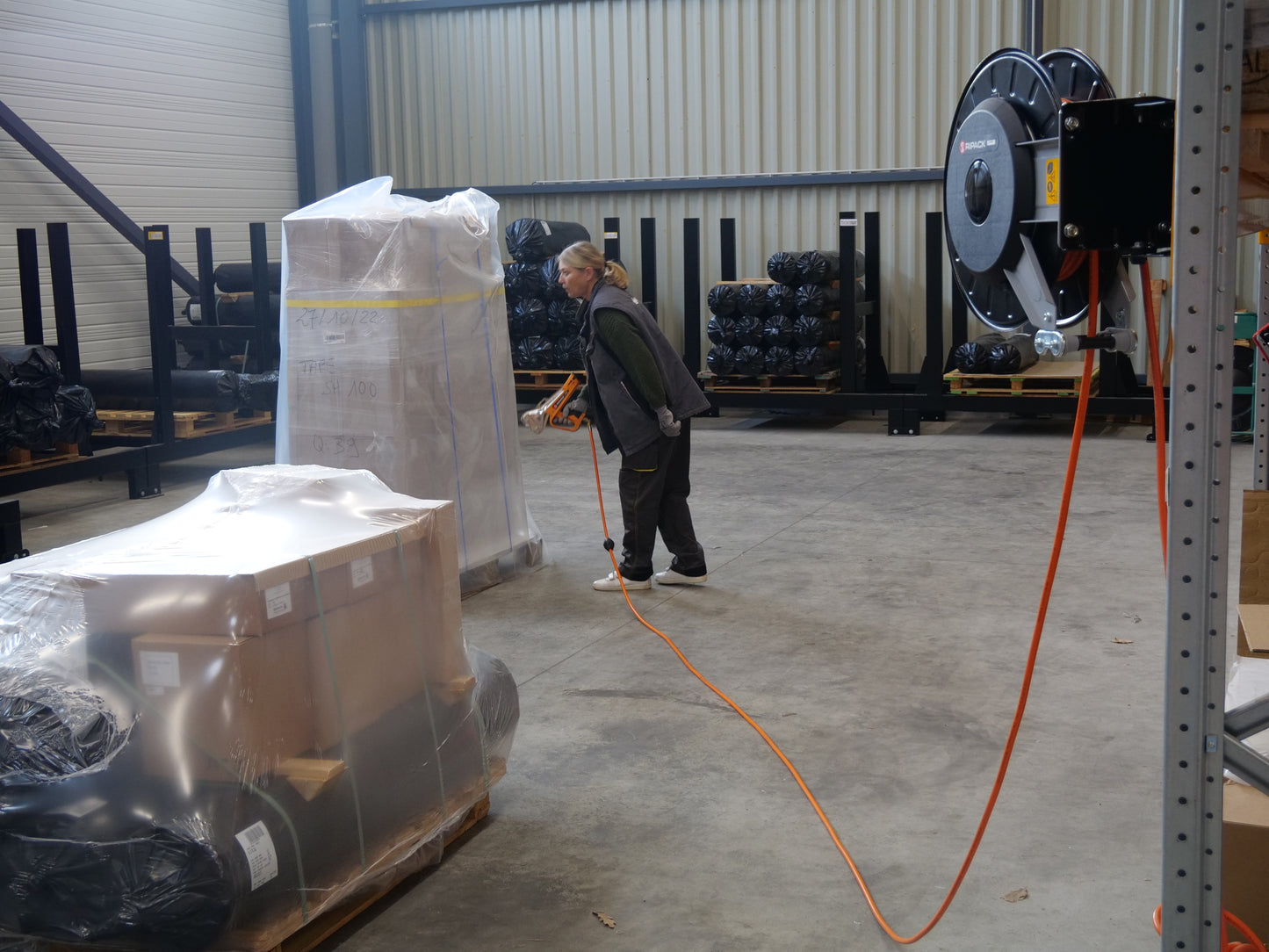

The R2100 F retraction kit combines the retraction quality of the 2100 shrink gun with the ergonomics of the Ripack gas hose reel. Choose this attractive solution, which will adapt perfectly to a fixed retraction station. The combination of the gun and the reel guarantees an optimized packing station, making it easier to move around the goods to be packed.

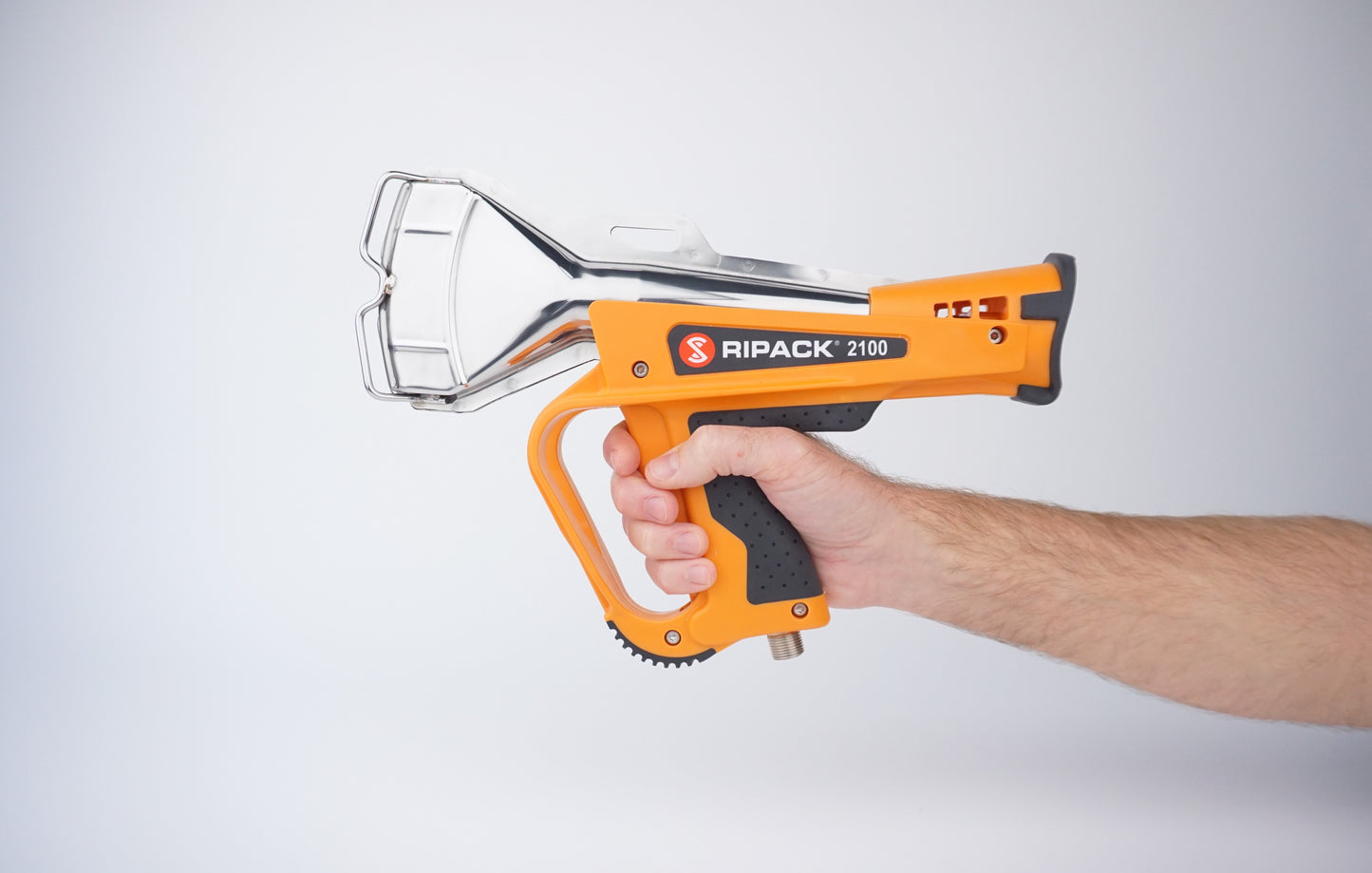

Technical description of the gun:
- Power: 40 kW
- Pressure: 2.5 bars
- Length / height: 360/240 mm
- Weight: 955 g
- Sound level: <85 dbA
- Energy source: Propane or natural gas on request
Hose reel:
- Support: Articulated at 120 °
- Ratchet: Multi-position stop
- Weight: 15.5 kg
- Long. Hose / drum: 15 m
- Long. Connection hose: 1.5 m
Usage tips:
When retracting, keep the gun always perpendicular and 30 cm from the film. To retract the film onto a pallet, allow the film to protrude 20cm on each side. Use a CALPACK to raise your pallet and allow the film to hook of the underside and thus solidify the load. Always start by heating all the lower parts then continue by sweeping continuously in the shape of "Z". Adjust your speed according to the
thickness of the film.
In order to successfully weld on flat film, make sure to let a film overlap area of at least 30 cm.
