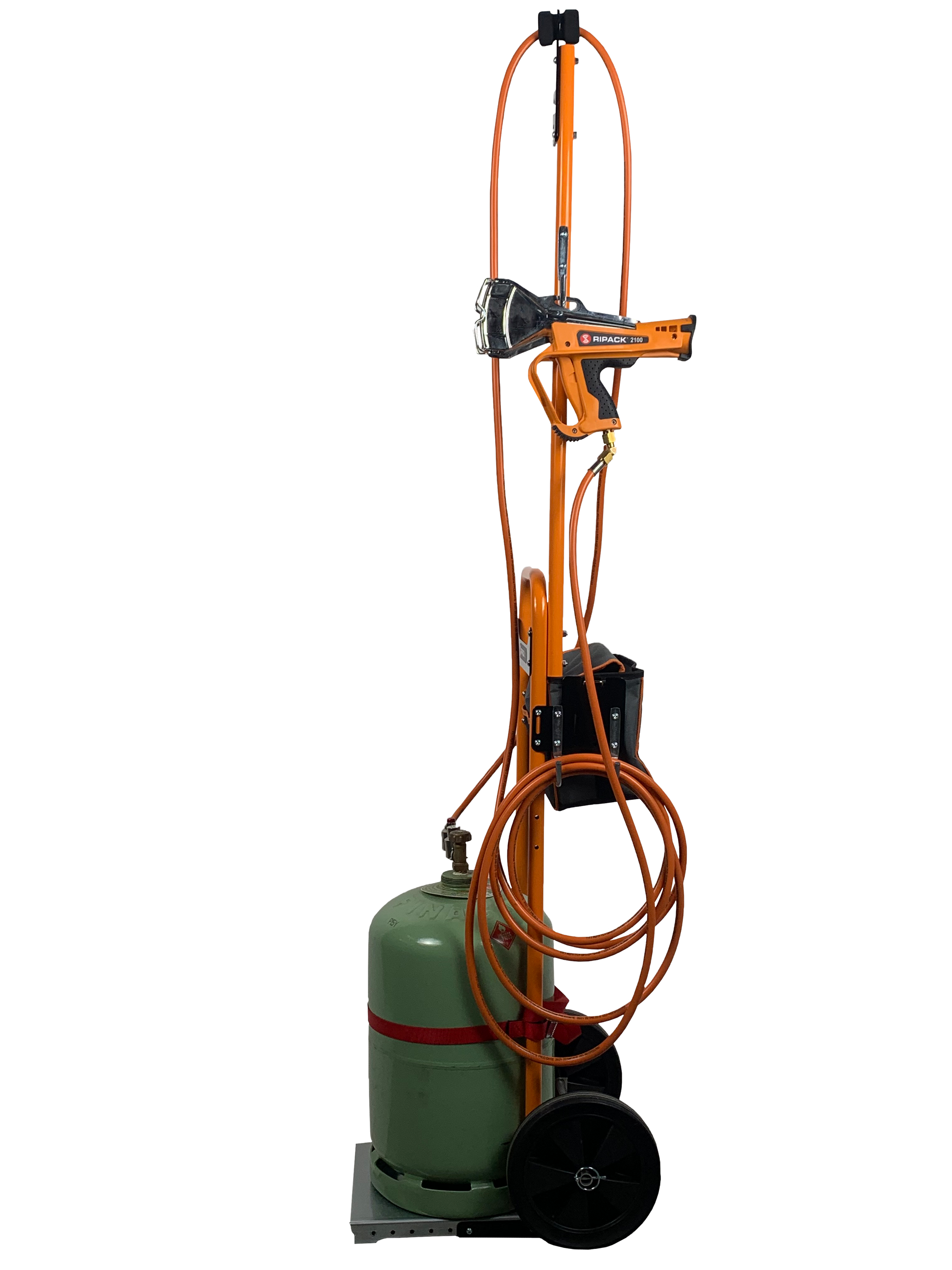

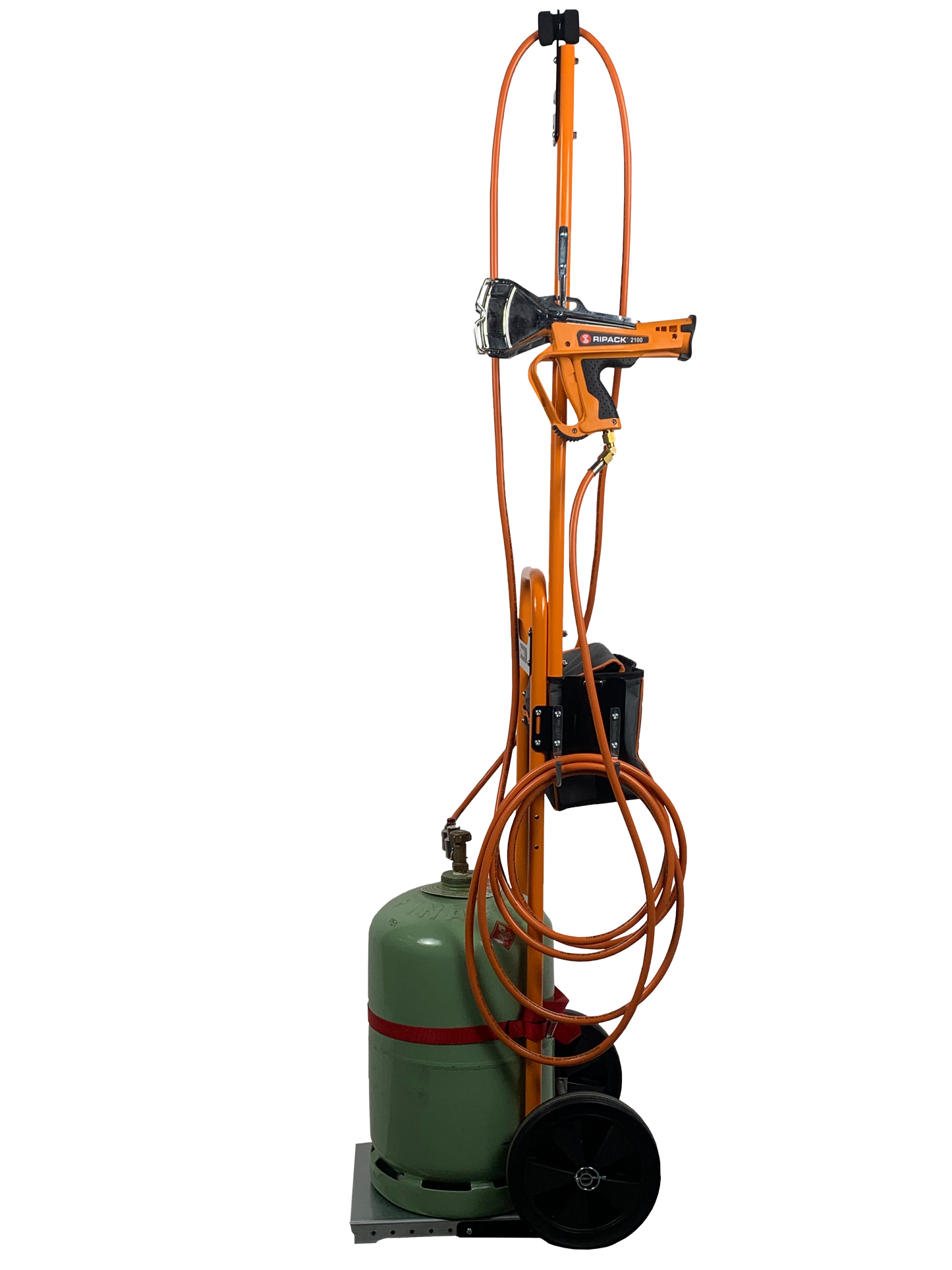

Ripack 2100 M (2100 & Trolley 936)

Shrinking KIT Ripack 2100 M

Short description:

• SAFE: Cold nozzle patent
• PRECISE: Ripack technology, Short and rigid flame
• ROBUST: Stainless steel nozzle and cops and shock absorber
• EASY: 40 kW
• ERGONOMIC: 0.955 Kg
• PRACTICAL: Trolley

Composition:

Trolley in 1 box with instructions + Gun delivered in a transport bag with: 1 SECURIPACK FIXED gas regulator, 1 8-meter hose with crimped connection, 1 wrench for tightening / loosening the fittings, 1 rotating connection, 1 user manual with CE certificate.

Detailed description:

The R2100 M is one of the Ripack innovations. Discover this retraction kit, consisting of our Ripack 2100, as well as a bottle trolley. This attractive solution will therefore be ideal for occasional shrinkage requirements on a mobile packing station. The bottle trolley will thus improve safety in the workplace.

Technical gun description:

- Power: 40 kW
- Pressure: 2.5 bars
- Length / height: 360/240 mm
- Weight: 955 g
- Sound level: <85 dbA
- Energy source: Propane or natural gas on request

Trolley:

- Eligible gas cylinder: Propane 13kg
- Type of movement: 2-wheel hand truck
- Overall dimensions (L x W x H): 520 x 520 x 2210 mm
- Net weight without bottle: 10.2 kg

Usage tips:

When retracting, keep the gun always perpendicular and 30 cm from the film. To retract the film onto a pallet, allow the film to protrude 20cm on each side. Use a CALPACK to raise your pallet and allow the film to hook of the underside and thus solidify the load. Always start by heating all the lower parts then continue by sweeping continuously in the shape of "Z". Adjust your speed according to the
thickness of the film.

In order to successfully weld on flat film, make sure to let a film overlap area of at least 30 cm
