Shrinking KIT Ripack R3000 F
Short description:
- SAFE: Cold nozzle patent
- PRECISE: Ripack technology, Short and rigid flame
- ROBUST: Aluminum body and shock absorber
- PERFORMANCE: from 45 to 80 kW
- EVOLVING: 5 "CLICK & GO" extension models
- PRACTICAL: Hose reel
Composition:
1 Hose reel in a box with manual + gun delivered in a transport bag with: 1 SECURIPACK 1.5-3.5 bar gas regulator, 1 8-meter hose with crimped connection, 2 piezo including 1 spare integrated in the handle, 1 tightening / loosening wrench, 1 swivel connector, 1 user manual with CE certificate.
Detailed description:

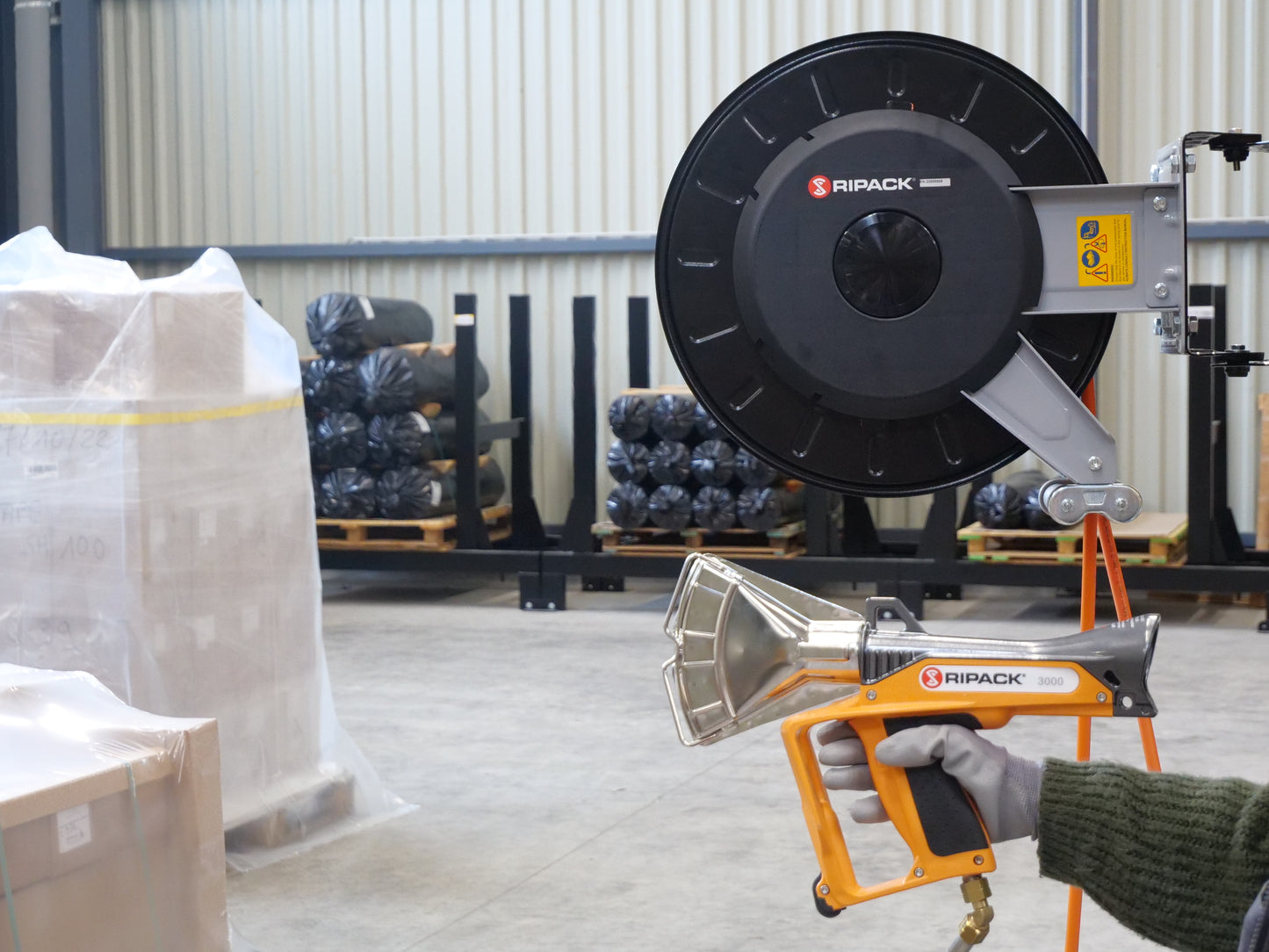

Choose the R3000 F kit, the most attractive solution for intensive shrinking needs, on a fixed packing station.
The combination of our star product, the Ripack 3000 and the gas hose reel, will allow you to retract all types of films. Benefit from easy retraction, thanks to the ratchet which locks the hose at the desired distance. The automatic hose return system has an essential advantage. You will not be cluttered, and your workstation will be organized. Equipped with a Securipack regulator, this kit allows you to benefit from a high level of safety and an optimal level of performance. An adjustable power from 45 to 80 kW will allow you to adapt to any type of film.
Technical description:
Power: 45 to 80 kW
- Pressure: 1.5 to 3.5 bars
- Length / height: 375/262 mm
- Weight: 1220 g
- Sound level: <85 dbA
- Energy source: Propane or natural gas on request
- Package size (L x W x H): 460 x 330 x 140 mm
- Package weight: 5140g
- Gas consumption: 3.06 to 5.41 kg / hou

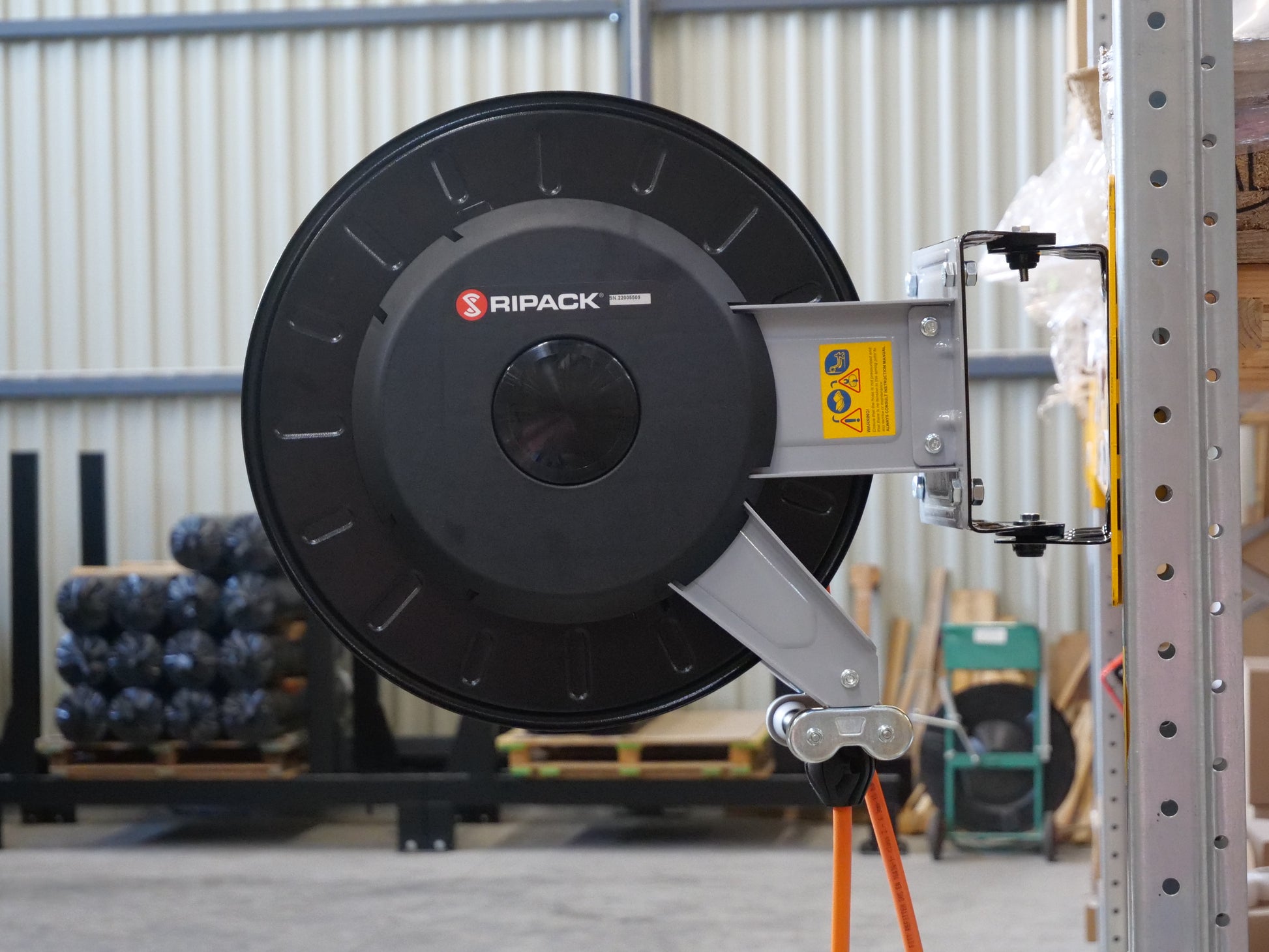

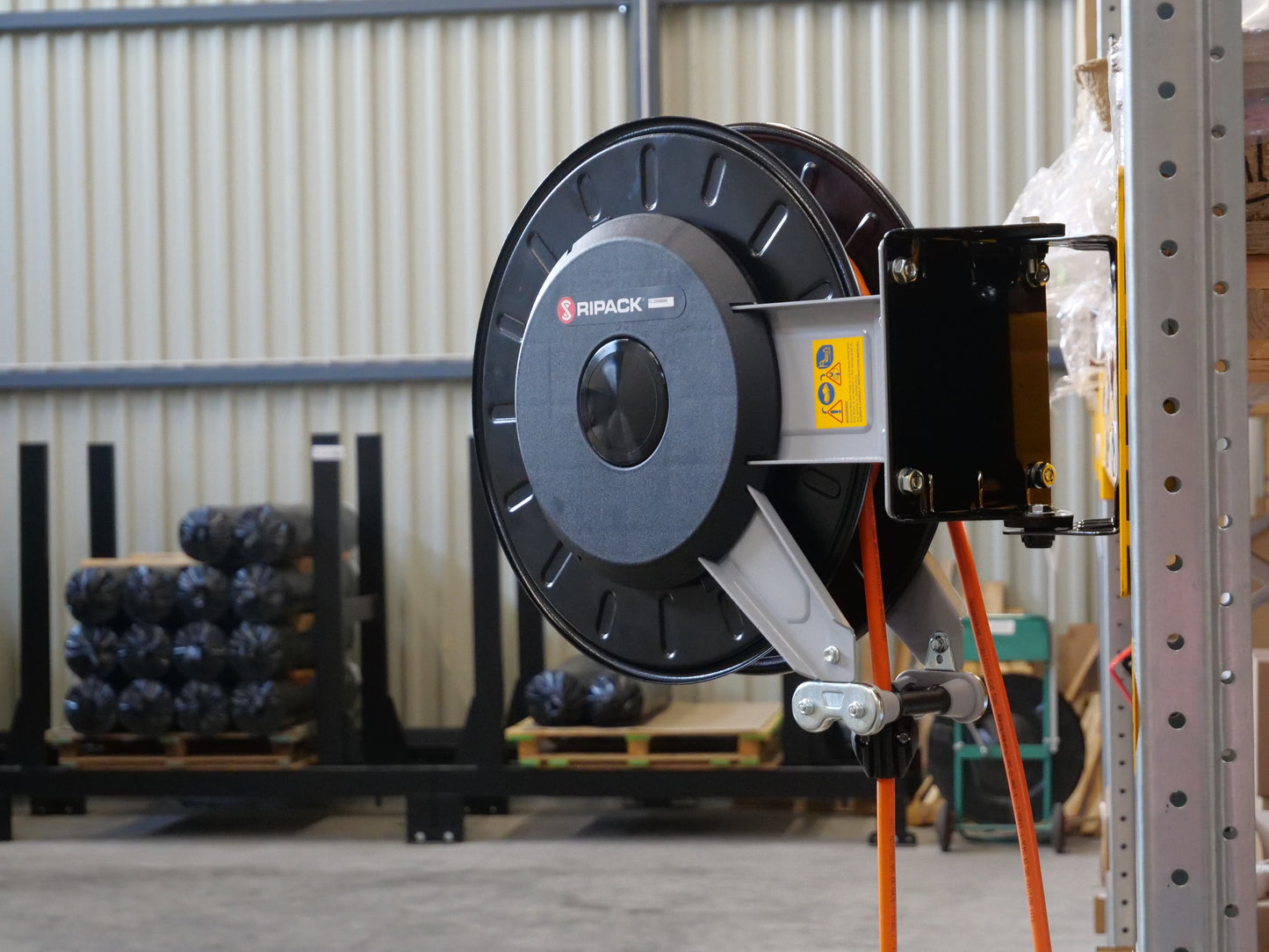

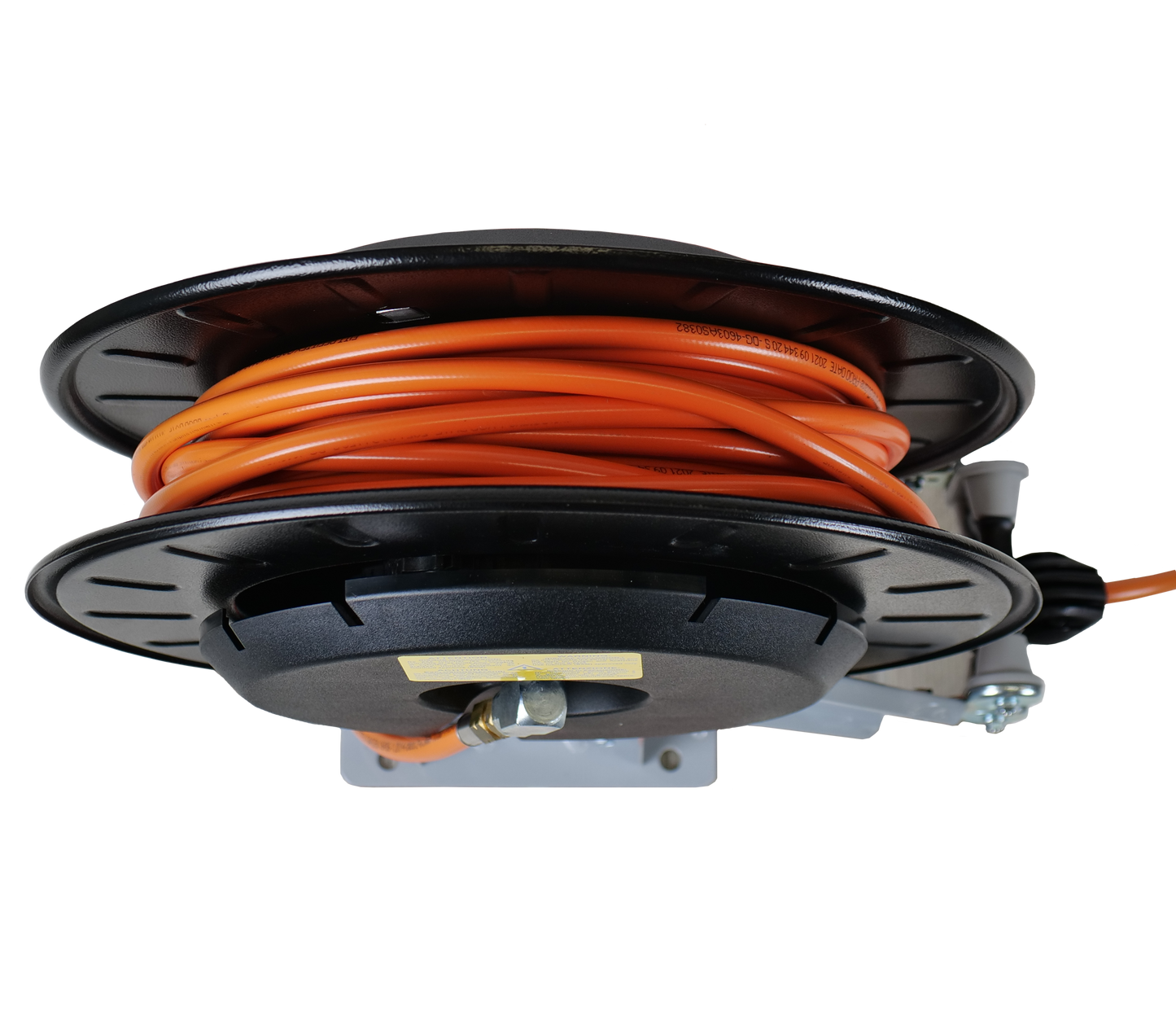

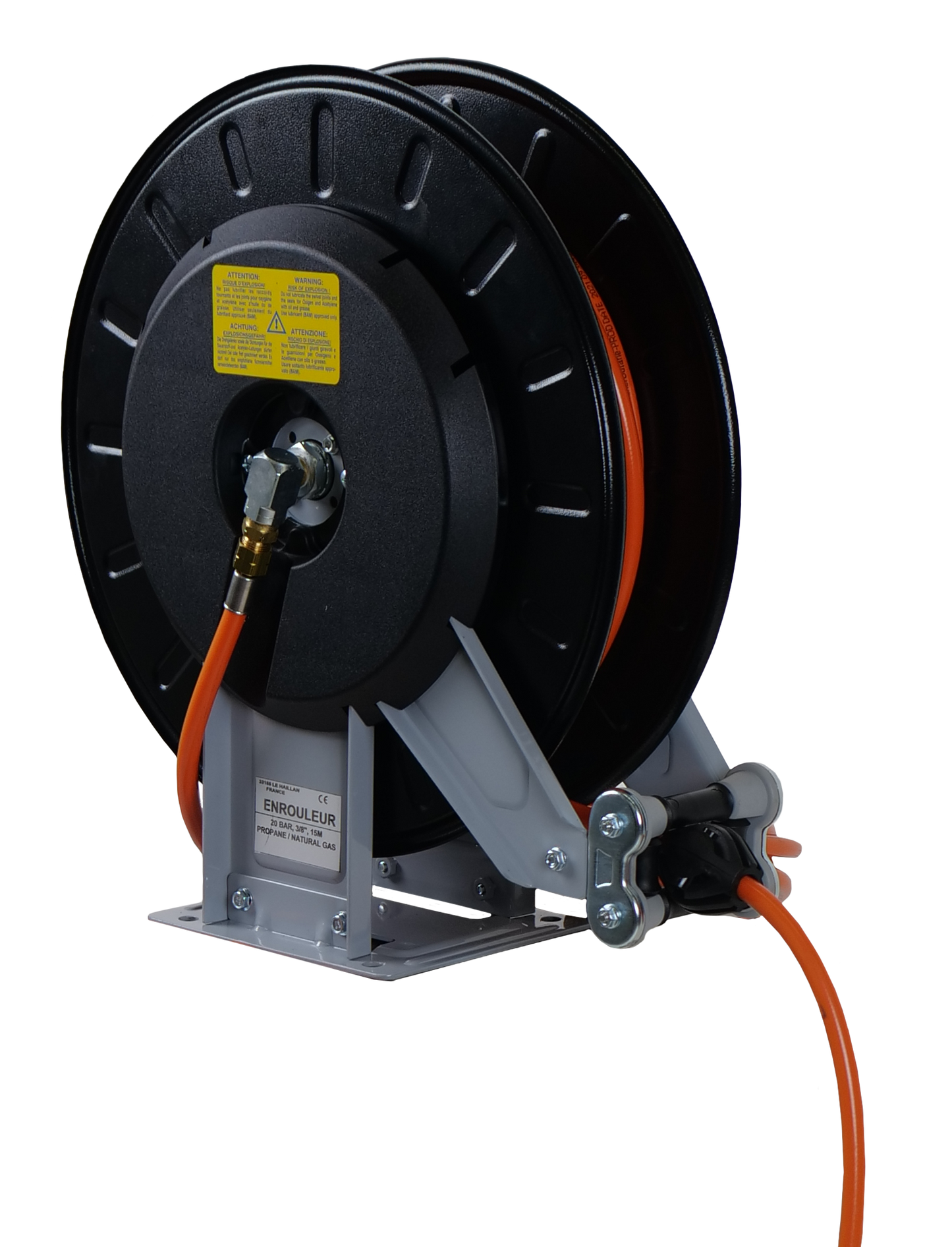

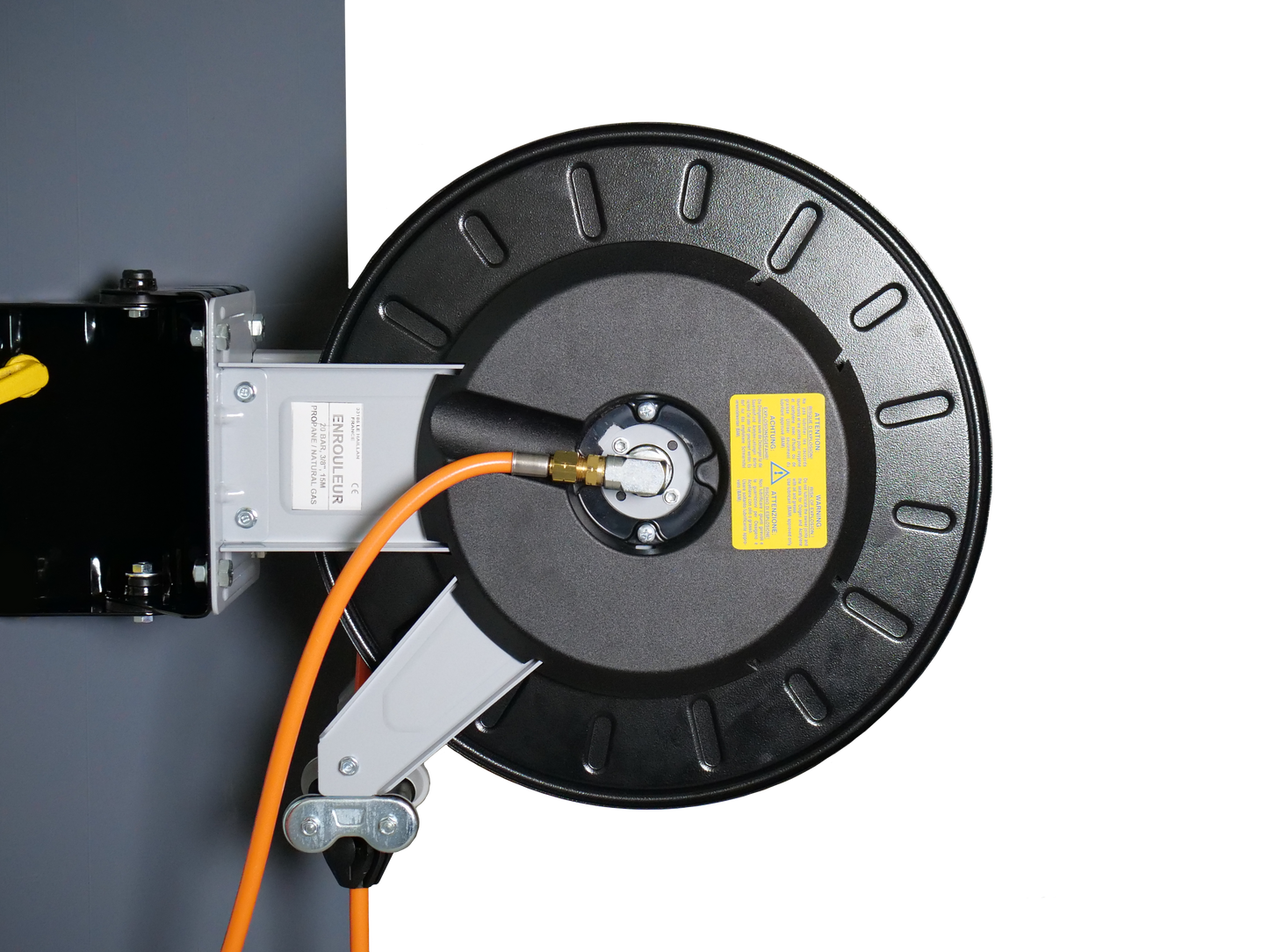

Hose reel:
- Support: Articulated at 120 °
- Ratchet: Multi-position stop
- Weight: 15.5 kg
- Long. Hose / drum: 15 m
- Long. Connection hose: 1.5 m
Usage tips:
When retracting, keep the gun always perpendicular and 30 cm from the film. To retract the film onto a pallet, allow the film to protrude 20cm on each side. Use a CALPACK to raise your pallet and allow the film to hook of the underside and thus solidify the load. Always start by heating all the lower parts then continue by sweeping continuously in the shape of "Z". Adjust your speed according to the thickness of the film. (See method in video).
In order to successfully weld on flat film, make sure to let a film overlap area of at least 30 cm
