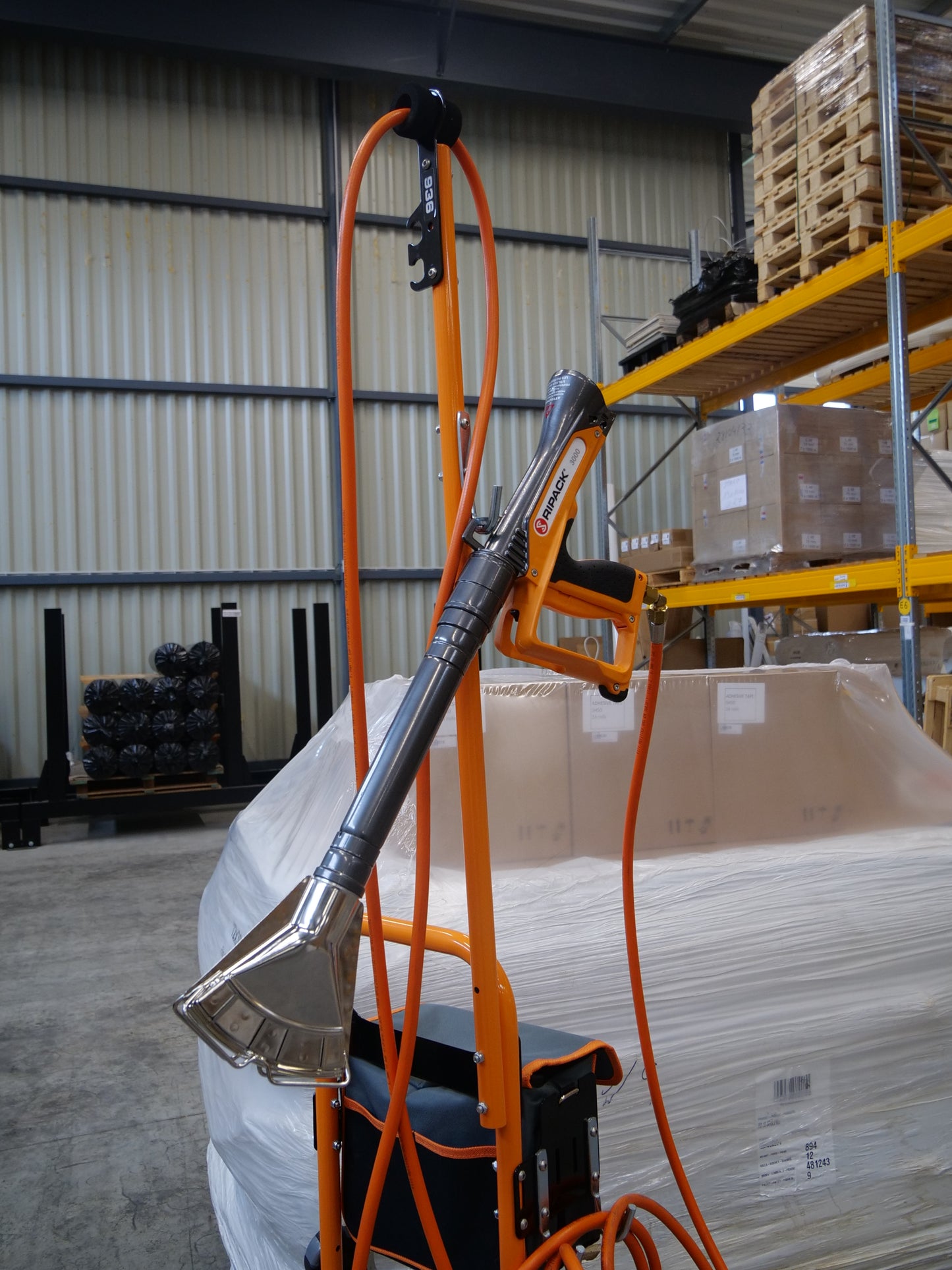

Ripack 3000+ M (3000 & Trolley 936)

Shrinking KIT Ripack R3000 + M

Short description:

- SAFE: Cold nozzle patent
- PRECISE: Ripack technology, Short and rigid flame
- ROBUST: Aluminum body and shock absorber
- PERFORMANCE: from 45 to 80 kW
- ERGONOMIC: Short lance 33 cm / reduction of MSDs
- PRACTICAL: Trolley

Composition:

Trolley in 1 box with instructions + gun delivered in a transport bag with: 1 SECURIPACK 1.5-3.5 bar gas regulator, 1 8-meter hose with crimped connection, 2 piezo including 1 spare integrated in the handle, 1 tightening / loosening wrench, 1 swivel connector, 1 extension of 33 cm, 1 user manual with CE certificate.

Detailed description:

Discover the R3000 + M, the new Ripack retraction kit, which will be your best ally for a mobile retraction station. Choose Ripack 3000 shrink gun power, combined with the ergonomics distributed by the S33 extension. This solution will be the most attractive if you have intensive retraction needs, with pallets of various sizes.
Designed to reduce the risk of Musculoskeletal Disorders (MSDs), this retraction kit makes it easy to transport your retraction station.

Equipped with a Securipack regulator, this kit allows you to benefit from a high level of safety and an optimal level of performance. An adjustable power from 45 to 80 kW will allow you to adapt to any type of film.

Technical description:

- Power: 45 to 80 kW
- Pressure: 1.5 to 3.5 bars
- Length / height: 375/262 mm
- Weight: 1220 g
- Sound level: <85 dbA
- Energy source: Propane or natural gas on request
- Package size (L x W x H): 460 x 330 x 140 mm
- Package weight: 5140g
- Gas consumption: 3.06 to 5.41 kg / hour

Trolley:

- Eligible gas cylinder: Propane 13kg
- Type of movement: 2-wheel hand truck
- Overall dimensions (L x W x H): 520 x 520 x 2210 mm
- Net weight without bottle: 10.2 kg

Usage tips:

When retracting, keep the gun always perpendicular and 30 cm from the film. To retract the film onto a pallet, allow the film to protrude 20cm on each side. Use a CALPACK to raise your pallet and allow the film to hook of the underside and thus solidify the load. Always start by heating all the lower parts then continue by sweeping continuously in the shape of "Z". Adjust your speed according to the thickness of the film.

In order to successfully weld on flat film, make sure to let a film overlap area of at least 30 cm.
